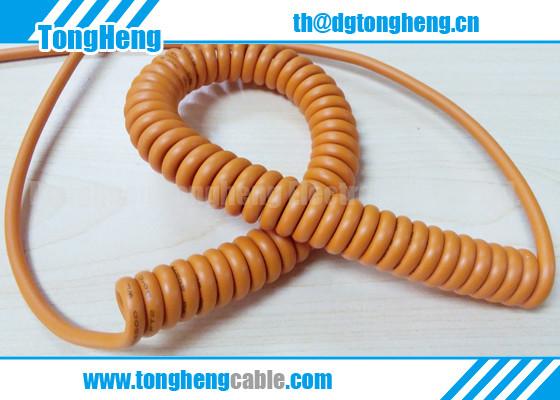

    Fire Retardant Reinforced Polyester Coated Customized Spiral Cable

    Ask Lasest Price
    Brand Name : Spiral Cable
    Model Number : TH-8127612
    Certification : UL, CUL, CSA, AWM, CE
    Price : USD0.24~0.63 per piece
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 800,000pcs per month
    Delivery Time : 10 days for ready goods
    • Product Details
    • Company Profile

    Fire Retardant Reinforced Polyester Coated Customized Spiral Cable

    Fire Retardant Reinforced Polyester Coated Customized Spiral Cable


    Spiral Cable is one of Tongheng main products. Fire Retardant Reinforced Polyester Coated Customized Spiral Cable can be customized exactly following customers requirement. As the professional manufacturer, Tongheng staff engage to present customer the best quality article. Fire Retardant Reinforced Polyester Coated Customized Spiral Cable is one of the excellent example. Its remarkable advantage is fire retardant.


    Here below is the product properties:


    Conductors materials: Oxygen Free Copper Wires

    Jacketed materials: polyester polyurethane.

    Feature: Fire retardant

    100% RoHS compliant


    Product parameters:


    Spiral CableConductor StrandsInsulation ThicknessNominal DiameterScreened CoverageSheath ThicknessOverall DiameterConductor Resistance
    No/mmmmmm%mmmmΩ/KM(20℃)
    2C7/0.1000.381.10≥650.764.40381.00
    2C7/0.1270.381.20≥650.764.50239.00
    2C7/0.160.381.30≥650.764.60150.00
    2C11/0.160.381.40≥650.764.9094.20
    2C17/0.160.381.60≥650.765.1059.40
    2C21/0.1780.381.80≥650.765.5036.70
    2C34/0.1780.382.10≥650.766.1023.20
    2C26/0.250.382.40≥650.766.9014.60
    3C7/0.1000.381.10≥650.764.50381.00
    3C7/0.1270.381.20≥650.764.70239.00
    3C7/0.160.381.30≥650.764.90150.00
    3C11/0.160.381.40≥650.765.1094.20
    3C17/0.160.381.60≥650.765.3059.40
    3C21/0.1780.381.80≥650.766.0036.70
    3C34/0.1780.382.10≥650.766.6023.20
    4C7/0.1000.381.10≥650.764.70381.00
    4C7/0.1270.381.20≥650.764.90239.00
    4C7/0.160.381.30≥650.765.20150.00
    4C11/0.160.381.40≥650.765.6094.20
    4C17/0.160.381.60≥650.765.9059.40
    4C21/0.1780.381.80≥650.766.4036.70
    5C7/0.1000.381.10≥650.764.90381.00
    5C7/0.1270.381.20≥650.765.10239.00
    5C7/0.160.381.30≥650.765.20150.00
    5C11/0.160.381.40≥650.765.6094.20
    5C17/0.160.381.60≥650.766.2059.40
    6C7/0.1000.381.10≥650.765.10381.00
    6C7/0.1270.381.20≥650.765.50239.00
    6C7/0.160.381.30≥650.765.90150.00
    6C11/0.160.381.40≥650.766.2094.20

    Contact:


    Thanks for your visit to our website. The above displayed parameters are just for reference. Please ask us for customized ones immediately if you have the differentt requirement.
