Repetitive Flex Resistant Polyurethane PUR Jacketed Customized Coil Cable

Ask Lasest Price
Brand Name :	Spiral Cable
Model Number :	TH-815126
Certification :	UL, CUL, CSA, AWM, CE
Price :	USD0.22~0.63 per piece
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	800,000pcs per month
Delivery Time :	10 days for ready goods

Add to Cart

Product Details
Company Profile

Repetitive Flex Resistant Polyurethane PUR Jacketed Customized Coil Cable

Repetitive Flex Resistant Polyurethane PUR Jacketed Customized Coil Cable

Coil Cable is one of Tongheng main products. Repetitive Flex Resistant Polyurethane PUR Jacketed Customized Coil Cable can be customized exactly following customers requirement. As the professional manufacturer, Tongheng staff engage to present customer the best quality article. Repetitive Flex Resistant Polyurethane PUR Jacketed Customized Coil Cable is one of the excellent example. Its remarkable advantage is repetitive flex resistant.

Here below is the product properties:

Conductor Quantity: 2C to 55C

Jacket Materials: Polyurethane PUR

Standard: UL758, CSA22.2

To be customized per customer request.

Product parameters:

Coil Cable	Conductor Structure	Insulation Thickness	Nominal Diameter	Screened Coverage	Sheath Thickness	Overall Diameter	Conductor Resistance
Coil Cable	No/mm	mm	mm	%	mm	mm	Ω/KM(20℃)
2C	7/0.100	0.23	0.80	≥65	0.89	3.80	381.00
2C	7/0.127	0.23	0.90	≥65	0.89	4.10	239.00
2C	7/0.16	0.23	1.00	≥65	0.89	4.30	150.00
2C	11/0.16	0.23	1.10	≥65	0.89	4.40	94.20
2C	17/0.16	0.23	1.30	≥65	0.89	4.80	59.40
2C	21/0.178	0.23	1.50	≥65	0.89	5.20	36.70
2C	34/0.178	0.23	1.80	≥65	0.89	5.80	23.20
2C	26/0.25	0.23	2.00	≥65	0.89	8.00	14.60
3C	7/0.100	0.23	0.80	≥65	0.89	5.70	381.00
3C	7/0.127	0.23	0.90	≥65	0.89	5.90	239.00
3C	7/0.16	0.23	1.00	≥65	0.89	6.10	150.00
3C	11/0.16	0.23	1.10	≥65	0.89	6.30	94.20
3C	17/0.16	0.23	1.30	≥65	0.89	6.70	59.40
3C	21/0.178	0.23	1.50	≥65	0.89	7.20	36.70
3C	34/0.178	0.23	1.80	≥65	0.89	7.80	23.20
4C	7/0.100	0.23	0.80	≥65	0.89	5.90	381.00
4C	7/0.127	0.23	0.90	≥65	0.89	6.10	239.00
4C	7/0.16	0.23	1.00	≥65	0.89	6.40	150.00
4C	11/0.16	0.23	1.10	≥65	0.89	6.70	94.20
4C	17/0.16	0.23	1.30	≥65	0.89	7.10	59.40
4C	21/0.178	0.23	1.50	≥65	0.89	7.60	36.70
5C	7/0.100	0.23	0.80	≥65	0.89	6.20	381.00
5C	7/0.127	0.23	0.90	≥65	0.89	6.50	239.00
5C	7/0.16	0.23	1.00	≥65	0.89	6.60	150.00
5C	11/0.16	0.23	1.10	≥65	0.89	7.00	94.20
5C	17/0.16	0.23	1.30	≥65	0.89	7.60	59.40
6C	7/0.100	0.23	0.80	≥65	0.89	6.60	381.00
6C	7/0.127	0.23	0.90	≥65	0.89	6.90	239.00
6C	7/0.16	0.23	1.00	≥65	0.89	7.20	150.00
6C	11/0.16	0.23	1.10	≥65	0.89	7.50	94.20

Product Image:

Repetitive Flex Resistant Polyurethane PUR Jacketed Customized Coil Cable

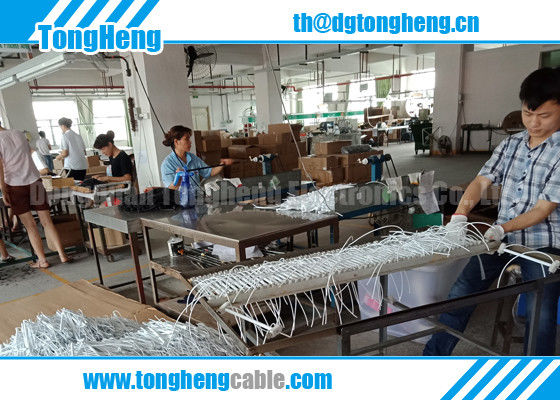

Manufacturing Procedures:

Repetitive Flex Resistant Polyurethane PUR Jacketed Customized Coil Cable

Contact:

Thanks for your visit to our website. The above displayed parameters are just for reference. Please ask us for customized ones immediately if you have the different requirement.

Frequently Asked Question (FAQ)

1. Is spring cable the same as spiral cable?

Spring cable, spiral cable are basically the same materials. Some call it spring cable, because the stretched cable will be rebounded back very easily just like a spring. Some call it spiral cable, due to its particular spiral coiled form.

2. Where to buy spring cable in China?

We are China local specialist of spring cable. Customers have the option to designate the detailed raw cable specification and the required specific dimensions of the spring-like body. High flexibility and long flex life. UL certification is also available for option.

3. Why is spring cable better than normal straight cable?

The spring-like design makes the cable able to extend for longer distance as necessary, and rebound back if not needed, with taking up much less space. Spring cable is also not prone to tangle and knot easily like regular straight cable.

Repetitive Flex Resistant Polyurethane PUR Jacketed Customized Coil Cable
