Lighting Equipment Customized Halogen Free Fire Resistant Cable Rated 105C 300V

Dongguan Tongheng Electronics Co., Ltd.
Contact Now
    Buy cheap Lighting Equipment Customized Halogen Free Fire Resistant Cable Rated 105C 300V from wholesalers

    Buy cheap Lighting Equipment Customized Halogen Free Fire Resistant Cable Rated 105C 300V from wholesalers
    • Buy cheap Lighting Equipment Customized Halogen Free Fire Resistant Cable Rated 105C 300V from wholesalers

    Lighting Equipment Customized Halogen Free Fire Resistant Cable Rated 105C 300V

    Ask Lasest Price
    Brand Name : Fire Retardant Cable
    Model Number : TH-830148
    Certification : UL, CSA, AWM
    Price : USD0.16~0.48 per meter
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 10,000,000 meters monthly
    Delivery Time : 10 working days
    • Product Details
    • Company Profile

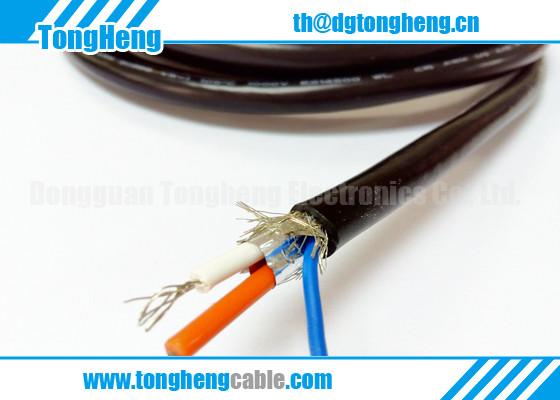

    Lighting Equipment Customized Halogen Free Fire Resistant Cable Rated 105C 300V

    Lighting Equipment Customized Halogen Free Fire Resistant Cable


    Customized Cable is the most featured products of Tongheng business. Lighting Equipment Customized Halogen Free Fire Resistant Cable is produced strictly following customers requirement. As the professional manufacturer, Tongheng staff engage to create customer the best quality cable. Lighting Equipment Customized Halogen Free Fire Resistant Cable is one of the excellent example. Its remarkable advantage is fire resistant and halogen free.


    Here below is the product properties:


    • High purity copper conductors wtih tin coated.
    • Rated Voltage: 300V
    • Rated Temperature: -40C to 105C Degrees
    • Colour coded insulation wires, can be determined by customers.
    • Feature: Lighting equipment use purpose
    • Approved style numbers: UL21198 recommended, or to be determined by customers.

    Product parameters:


    Part NumberSpecificationConductor StrandsJacket ThicknessConductor Resistance
    Ul2075130 AWG x 2 Cores7/0.1024 mils / 0.61mm381.00
    Ul2075228 AWG x 2 Cores9/0.1124 mils / 0.61mm239.00
    Ul2075326 AWG x 2 Cores14/0.1124 mils / 0.61mm150.00
    Ul2075424 AWG x 2 Cores22/0.1124 mils / 0.61mm94.20
    Ul2075522 AWG x 2 Cores35/0.1124 mils / 0.61mm59.40
    Ul2075620 AWG x 2 Cores55/0.1124 mils / 0.61mm36.70
    Ul2075718 AWG x 2 Cores87/0.1124 mils / 0.61mm23.20
    Ul2075816 AWG x 2 Cores138/0.1124 mils / 0.61mm14.60
    Ul2075930 AWG x 3 Cores7/0.1024 mils / 0.61mm381.00
    Ul2076028 AWG x 3 Cores9/0.1124 mils / 0.61mm239.00
    Ul2076126 AWG x 3 Cores14/0.1124 mils / 0.61mm150.00
    Ul2076224 AWG x 3 Cores22/0.1124 mils / 0.61mm94.20
    Ul2076322 AWG x 3 Cores35/0.1124 mils / 0.61mm59.40
    Ul2076420 AWG x 3 Cores55/0.1124 mils / 0.61mm36.70
    Ul2076518 AWG x 3 Cores87/0.1124 mils / 0.61mm23.20
    Ul2076630 AWG x 4 Cores7/0.1024 mils / 0.61mm381.00
    Ul2076728 AWG x 4 Cores9/0.1124 mils / 0.61mm239.00
    Ul2076826 AWG x 4 Cores14/0.1124 mils / 0.61mm150.00
    Ul2076924 AWG x 4 Cores22/0.1124 mils / 0.61mm94.20
    Ul2077022 AWG x 4 Cores35/0.1124 mils / 0.61mm59.40
    Ul2077120 AWG x 4 Cores55/0.1124 mils / 0.61mm36.70
    Ul2077230 AWG x 5 Cores7/0.1024 mils / 0.61mm381.00
    Ul2077328 AWG x 5 Cores9/0.1124 mils / 0.61mm239.00
    Ul2077426 AWG x 5 Cores14/0.1124 mils / 0.61mm150.00
    Ul2077524 AWG x 5 Cores22/0.1124 mils / 0.61mm94.20
    Ul2077622 AWG x 5 Cores35/0.1124 mils / 0.61mm59.40
    Ul2077730 AWG x 6 Cores7/0.1024 mils / 0.61mm381.00
    Ul2077828 AWG x 6 Cores9/0.1124 mils / 0.61mm239.00
    Ul2077926 AWG x 6 Cores14/0.1124 mils / 0.61mm150.00
    Ul2078024 AWG x 6 Cores22/0.1124 mils / 0.61mm94.20

    Contact:


    Thanks for your visit to our website. The above displayed parameters are just for reference. Please ask us (Contact Us) for customized ones immediately if you have the different requirement.
