Safety Verified Heat Resistant Hospital Bed And Medical Device
Customized TPE Cable
With years of manufacture experience, Customized TPE cable is the
majored product of Tongheng. The outstanding feature of the
customized TPE cable is to safety verified and heat resistant. For
this, Tongheng's customized TPE cable is up to 105C degrees working
temperature rated. The main application of this series is hospital
bed and medical devices. Welcome to touch us for the customized
cable in need.
Here below is the product properties:
- High purity copper conductors.
- Rated Voltage: 600V
- Rated Temperature: 105C Degrees
- Colour coded insulation wires, can be determined by customers.
- Application: Hospital Bed and Medical Device
- Approved style numbers: UL21011 recommended, or to be determined by
customers.
Product parameters:
| Part Number | Specification | Conductor Strands | Overall Diameter (mm) | Conductor Resistance |
| Ul20991 | 30 AWG x 2 Cores | 26/0.05 | 3.40 | 381.00 |
| Ul20992 | 28 AWG x 2 Cores | 41/0.05 | 3.70 | 239.00 |
| Ul20993 | 26 AWG x 2 Cores | 66/0.05 | 3.80 | 150.00 |
| Ul20994 | 24 AWG x 2 Cores | 105/0.05 | 4.00 | 94.20 |
| Ul20995 | 22 AWG x 2 Cores | 165/0.05 | 4.40 | 59.40 |
| Ul20996 | 20 AWG x 2 Cores | 265/0.05 | 4.80 | 36.70 |
| Ul20997 | 18 AWG x 2 Cores | 164/0.08 | 5.40 | 23.20 |
| Ul20998 | 16 AWG x 2 Cores | 265/0.08 | 7.60 | 14.60 |
| Ul20999 | 30 AWG x 3 Cores | 26/0.05 | 5.30 | 381.00 |
| Ul21000 | 28 AWG x 3 Cores | 41/0.05 | 5.50 | 239.00 |
| Ul21001 | 26 AWG x 3 Cores | 66/0.05 | 5.70 | 150.00 |
| Ul21002 | 24 AWG x 3 Cores | 105/0.05 | 5.90 | 94.20 |
| Ul21003 | 22 AWG x 3 Cores | 165/0.05 | 6.30 | 59.40 |
| Ul21004 | 20 AWG x 3 Cores | 265/0.05 | 6.80 | 36.70 |
| Ul21005 | 18 AWG x 3 Cores | 164/0.08 | 7.40 | 23.20 |
| Ul21006 | 30 AWG x 4 Cores | 26/0.05 | 5.50 | 381.00 |
| Ul21007 | 28 AWG x 4 Cores | 41/0.05 | 5.70 | 239.00 |
| Ul21008 | 26 AWG x 4 Cores | 66/0.05 | 6.00 | 150.00 |
| Ul21009 | 24 AWG x 4 Cores | 105/0.05 | 6.30 | 94.20 |
| Ul21010 | 22 AWG x 4 Cores | 165/0.05 | 6.70 | 59.40 |
| Ul21011 | 20 AWG x 4 Cores | 265/0.05 | 8.20 | 36.70 |
| Ul21012 | 30 AWG x 5 Cores | 26/0.05 | 5.80 | 381.00 |
| Ul21013 | 28 AWG x 5 Cores | 41/0.05 | 6.10 | 239.00 |
| Ul21014 | 26 AWG x 5 Cores | 66/0.05 | 6.20 | 150.00 |
| Ul21015 | 24 AWG x 5 Cores | 105/0.05 | 6.70 | 94.20 |
| Ul21016 | 22 AWG x 5 Cores | 165/0.05 | 7.20 | 59.40 |
| Ul21017 | 30 AWG x 6 Cores | 26/0.05 | 6.20 | 381.00 |
| Ul21018 | 28 AWG x 6 Cores | 41/0.05 | 6.50 | 239.00 |
| Ul21019 | 26 AWG x 6 Cores | 66/0.05 | 6.80 | 150.00 |
| Ul21020 | 24 AWG x 6 Cores | 105/0.05 | 7.10 | 94.20 |
Tongheng Cable Introduction
Tongheng company (Dongguan Tongheng Electronics Co., Ltd.) was
established since 2007. Its former body was an UK holding company. Its featured products include but are not limited to Retractable cable, Customized cable, Halogen free cable, Flame retardant cable, Silicone rubber cable,
Rubber flexible cable, Teflon FEP cable, Elastomer cable,
Polyurethane cable, Irradiated XLPE cable, UL Plenum cable, CE
approved cable. Main Customers
The products are widely used for all kinds of electrical or
electronic appliances, commercial industries, aerospace,
automotive, gaming, medical devices, telecommunications etc. Thanks to the remarkable quality performance, our company earns the
trust and loyalty from more and more customers. Up to now, most of the products were exported to many foreign
countries other than China. Our main customers list includes
Flextronics, Littelfuse, Barcrest, Schneider, Avaya, Siemen, GE,
etc.
For many years experience, Tongheng company has created himeself
the great position of advantage in the market. As one of the
leading manufacturers in China, Tongheng company are focused more
on providing full solution of custom make the cable and wire
strictly following customers requirement. Customers can bring with
very specific requirement or just the concept, Tongheng staff is
able to make it the perfect artwork.
Tongheng company guarantees the high quality.
Tongheng company manufactures cables and wires with oxygen-free
pure copper conductors only. Higher copper conductor purity makes the cables and wires with
perfect electrical conductivity, wonderful processing performance,
good corrosion resistance and so on. In addition, Tongheng company
is granted with several international safety approval, that is, UL,
Cul, CSA, VDE, CCC, etc.
Tongheng company continuously work to achieve the best quality of products by
investing in the updating tools & facilities, and bring in
experienced talents to better meet the demand and requirement of
our customers. This has allowed us to create so much more value for
our customers.
RoHS compliant Guanranteed
Quality is our life of the factory. With serious and efficient
management, we dedicate ourselves to build the products as
perfectly what the customers need. All our purchased raw materials
must 100% comply with our HSF regulation. While all our cables and
wires delivered to customers must be 100% RoHS compliant. 100%!!

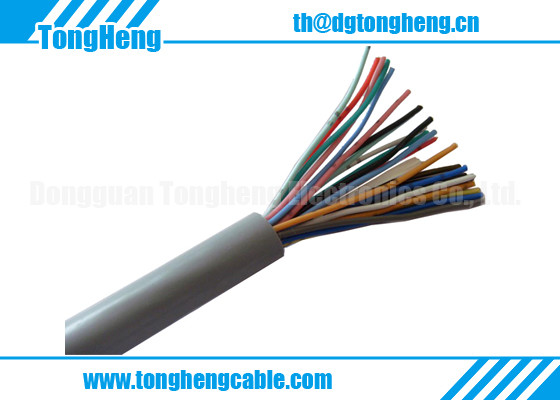

Product Image:
Safety Verified Heat Resistant Hospital Bed And Medical Device
Customized TPE Cable
Extrusion Production Lines:
As the professional customized cable manufacturer, Tongheng factory have 25 extrusion production lines.
The production capacity is up to 50,000,000 meters monthly.
Below is the extrusion lines workshops.
Quality Management:
- All cables & wires delivered to customers must 100% comply with
RoHS.
- All raw materials purchased from suppliers must 100% meet our
regulation of HSF (Hazardous Substance Free).
- All finished products 100% comply with HSF standard.
Cable Warehouse:
Safety Verified Heat Resistant Hospital Bed And Medical Device
Customized TPE Cable
Contact:
Thanks for your visit to our website. The above mentioned
properties and displayed parameters are just for reference. Please
ask us (contact us) for customized ones immediately if you have the
different requirement.
